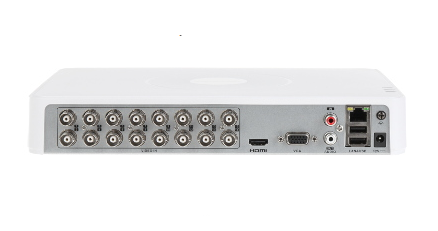

brands HIKVISION Standard: AHD, HD-CVI, HD-TVI, PAL Video inputs: 16 pcs BNC – HD-TVI / AHD / HD-CVI / CVBS Video outputs: 1 pcs HDMI 1 pcs VGA Audio inputs: 1 pcs CINCH Audio outputs: 1 pcs CINCH Image compression method: H.264 / H.264 Number of compression levels: 6 Image records resolutions: 960 x 1080 – 1080N 1280 x 720 – 720p 960 x 576 – 960H 704 x 576 – 4CIF 640 x 480 – VGA Maximal total frame rate: 400 fps @ 960 x 1080 px, 400 fps @ 1280 x 720 px, 400 fps @ 960 x 576 px 400 fps @ 704 x 576 px 400 fps @ 640 x 480 px Recording speed adjustment: 1 … 25 fps @ 960 x 1080 px 1 … 25 fps @ 1280 x 720 px 1 … 25 fps @ 960 x 576 1 … 25 fps @ 704 x 576 1 … 25 fps @ 640 x 480 px for each channel Operation modes: 16 x 1080N max. 25 fps 16 x 720p max. 25 fps All modes allow for any combination of the AHD-H, HD-CVI, HD-TVI, PAL cameras Recording modes: Manual, Motion Detection, Schedule Supported hard drives: 1 x 6 TB SATA External storage devices backup: Backup to USB drive (pendrive) Searching and playback the records: Records searching: timeline or file list. Playback: forward, fast, slow. Playback max. 16 cameras in the same time Network interface: 1 x RJ-45 – 10/100 Base-T Network functions: Network Client Software and IE browser: live view, playback and backup of the records, partial configuration of the recorder parameters Bitrate: 32 … 4096 kbps Network protocols: TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS Default IP address: DHCP or 192.168.1.64 Web browser access ports: 80 PC client access ports: Port no.: 8000 or access by a cloud (P2P) – iVMS-4200 application Mobile client access ports: 8000 Port ONVIF: 80 PTZ control: Control compatible with coax HD-TVI Hikvision Motion Detection: Split the screen into zones : 22 x 18 motion zones Power supply: 12 V DC / 2 A (power adapter included) Color: White Weight: 0.94 kg Dimensions: 283 x 219 x 47 mm
